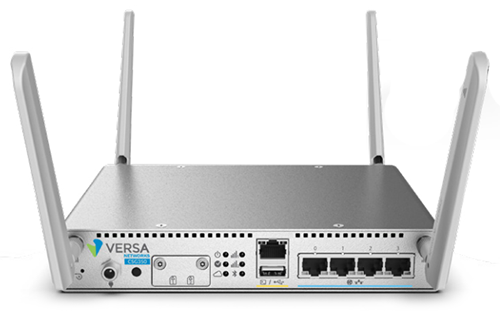

Versa CSG350
Cloud Services Gateway for Small Enterprise and Home Branch
Versa Cloud Services Gateway 350
Mini Desktop Network Appliance with quad core x86 processor, built-in crypto and compression capabilities in hardware, 4 GB ECC memory, 32 GB storage, 4x Cu GE ports for WAN and LAN, 1x USB ports, TPM, Bluetooth, External AC PSU#CSG350
Our Price: $525.00
Click here to jump to more pricing!
Overview:
Versa CSG350 is a compact and optimized appliance for deployment in small branches (up to 50 users) that require advanced application and cloud intelligence with hierarchical QoS, providing a cost-effective SD-WAN solution.
Next Generation Appliances for SD-WAN and Security
The Versa 300 series are built for customers deploying Versa Secure SD-WAN in small to medium size Enterprise offices, home offices, kiosk, and ATMs. The CSG300 series is built on a platform that is ideal for easy deployments in home offices of users who are looking to operate day-to-day business application usage.
With work-from-home now becoming the new normal in a post-COVID world, the 300 series is perfect for those who are looking for high performance for everyday activities directly from their home office.
The versatile CSG300 series appliances deliver carrier-grade reliability with enterprise-grade routing, SD-WAN, and Next-Generation Firewall all while supporting a diverse set of WAN access technologies (MPLS, Broadband) and wireless LAN & WAN access technologies (3G, 4G-LTE, LTE Advanced). The 300 series offer options of factory-installed cat-6 LTE modules for 4G/LTE-Advanced access. An integrated 802.11ac Access Point (AP) module is orderable as an add-on factory-installed module to provide enterprise-grade WLAN coverage for the branch. The CSG300 series appliances scale SD-WAN performance up to 500 Mbps and up to 125 users.
CSG300 Series Appliances
Versa Networks Cloud Services Gateway (CSG) is a next-generation enterprise software-defined networking appliance that is based on x86 architecture to deliver cloud-native SD-WAN, SD-Security, and SD-Routing services. CSG300 series appliances are ideal for customers deploying Versa Secure SD-WAN in small Enterprise and home branch solutions.
Versa CSG300 series appliances are supported by the Versa centralized management software such as, Versa Director, and Versa Analytics. Versa Secure SD-WAN architecture helps migrate from legacy WANs to a Software-Defined Branch and home solution, thus achieving superior business agility, seamless connectivity and lower TCO.
The versatile CSG300 series appliances deliver carrier-grade reliability, with enterprise-grade routing, SD-WAN and Next-Generation Firewall while supporting a diverse set of WAN access technologies (MPLS, Broadband) and wireless LAN & WAN access technologies (3G, 4G-LTE, LTE Advanced).
The CSG300 series appliances have Ethernet WAN and LAN ports for connectivity and can be ordered with an optional factory-installed LTE module for Cat-6 based 4G/LTE-Advanced access. An integrated 802.11ac Access Point (AP) module is orderable as an add-on factory-installed module, to provide enterprise-grade WLAN coverage for the branch. Field installable NICs expand the capabilities of CSG355 and CSG365 units further to provide 4 additional ports of Cu GE with POE+ to power up to 4 PoE connected devices (up to 60 Watts in total, with each port supporting up to 30 Watts). Alternatively, ADSL2/VDSL or T1-E1 ports can be added onto CSG35 and CSG365 units using respective NICs.
Designed to be aesthetically pleasing, the CSG300 series appliances are cooled with silent fans, making them suitable for deployment in small enterprise offices and home office environments. They can also be deployed in a standard 19” rack.
The CSG300 series appliances consists of the following base models
- CSG350 is a compact and optimized appliance for deployment in small branches (up to 50 users) that require advanced application and cloud intelligence with hierarchical QoS, providing a cost-effective SDWAN solution.
- CSG355 is a powerful appliance for deployment in both small- and medium-sized branches (up to 50 users) that need advanced SD-Security (NGFW + UTM) along with comprehensive advanced application and cloud-intelligent SD-WAN services on-premises.
- CSG365 is a high-performance appliance for deployment at a small to medium-sized branch (up to 125 users) location that require advanced application and cloud-intelligent SD-WAN services, advanced SDSecurity (NGFW and UTM).
Versa provides Versa Director to configure, monitor, and provision CSG appliances, while big data based Versa Analytics application provides device, network, and security analytics for the CSG appliances deployed Versa OS. The CSG300 series appliances can be deployed by managed service providers (MSPs) for scalable managed services and by enterprises of all sizes from small and medium businesses to Fortune 500 companies. The CSG300 series appliances have been designed for ease of use whether deployed as a desktop unit or deployed in a rack. Elegant design allows the appliances to be deployed in environments where silent operation is mandatory, such as in banks, retail offices, and home offices.
For rack-mounted deployments, the port side of the CSG300 series appliances is designed to simplify operations and accessibility and to improve visibility of device operational status and health. Status LEDs provide succinct visualization of the operational status of the device and of the Bluetooth, WLAN, and LTE connections.
Capabilities:
Versa Networks CSG series are a next-generation enterprise software-defined networking appliance that is based on Intel’s x86 latest architecture to deliver cloud-native SD-WAN, security, and routing services.
Networking + Security
Fully-featured routing, SD-WAN and layered security including NGFW, UTM and secure web gateway.
Versatility
Designed for ATMs, Home Offices, Small to Mid Enterprise Branches.
Integrated LTE
Up to two internal independent LTE Advanced links providing unmatched resiliency and flexibility for wireless WAN.
Enterprise-grade WiFi
802.11ac high-performance dual-radio WiFi module for enterprise-grade WLAN connectivity in the branch.
POE+
4-Port POE+ module to connect IP Phones, cameras, IoT devices.
Advantage:
Versatility and Flexibility
CSG300 series appliances are based on x86 architecture, taking advantage of the latest performance enhancements for packet processing, encryption offload, and compression/decompression offload via quickassist technology to deliver the most efficient, high performance appliance for the small branches and home offices. The innovative CSG300 series appliances are engineered to deliver high-performance and scalable multi-tenant, cloud-native enterprise-grade networking and security services, such as routing, SD-WAN, NGFW, CGNAT, 802.1x based access control and more.
Resiliency and Manageability Advantage
The CSG300 series appliances are designed for resiliency and durability to ensure business continuity and services. The appliances come with secure BIOS and securing booting capabilities. The CSG300 series appliances have specially designed LEDs that are unique and intuitive to instantly provide device and interface status for ease of manageability.
Security Advantage
The platform hardware has been designed with security use-cases in mind. A TPM chip integrated into the appliance ensures the integrity and security of critical data, such as encryption and authentication keys.
LTE Advantage
Cat-6 class 4G/LTE-Advanced support is ubiquitous across all models and can be used as a primary or backup WAN access link for the branch and remote sites. Enterprise customers can deploy CSG300 series appliances with up to four independent LTE-A links simultaneously, providing unmatched resiliency and flexibility for wireless WAN access from the branch.
Each appliance can be ordered with up to two factory-installed, enterprise grade, internal CAT-6 LTE Advanced (LTE-A) modems to provide simultaneous connectivity (Active/Active) to two active LTE access links. Each LTE modem provides performance up to 300 Mbps downstream and up to 50 Mbps upstream.
The embedded LTE-A modules are firmware controlled, allowing for maximum carrier flexibility and independence. The appliance has two externally accessible SIM card slots, one for each embedded LTE-A modem. If the appliance is configured with two LTE-A modems, each SIM card is used to control one LTE radio each. The appliance also has one USB slots that can be connected to an LTE dongle if desired. With two internal modems and one USB attached modem, customers can deploy up to three simultaneous LTE WAN connections.
Wi-Fi Advantage
Each CSG300 series appliance can be ordered with a factory-installed 802.11ac (Wave2) high-performance dual-radio access point module to deliver enterprise-grade WLAN connectivity to the branch. The WiFi AP module is an 802.11 a/b/g/n/an/ac (Wave2) access point that can support up to 8 SSIDs and 255 wireless clients concurrently (total 16 SSIDs). The embedded Wi-Fi AP module supports 2.4-GHz and 5-GHz frequency bands simultaneously (Dual Band, Dual Concurrent Access). The module supports 2x2 MU-MIMO with beamforming capabilities and is suitable for small-to-medium-office deployments. The WLAN AP module also supports Mesh Wi-Fi and frequency-band steering capabilities and has the sufficient transmission power and MRC capabilities to process weak wireless signals from distant client devices, thus providing the best possible user experience.
NIC options
The 4-port PoE+ Network Interface Card (NIC) optional module can provide up to a total of 60 Watts of power to four connected devices, delivering 15.4 Watts (802.3af) or 30 Watts (802.3at) of power to each device. Note, a second PSU (power supply unit) is required for the CSG300 series appliances to provide the additional power needed to distribute power for operating the PoE ports. APs, cameras, VoIP phones, and other PoEcapable devices can be powered without using AC adapters by leveraging the POE ports on the appliance.
CSG355 and CSG365 platforms also support additional NIC options such as ADSL/VDSL NIC and T1/E1 NIC.
Specification:
Versa CSG350
CSG350 is a compact and optimized appliance for deployment in small branches (up to 50 users) that require advanced application and cloud intelligence with hierarchical QoS, providing a cost-effective SD-WAN solution.
Versa CSG355
CSG355 is a powerful appliance for deployment in both small- and medium-sized branches (up to 50 users) that need advanced SD-Security (NGFW + UTM) along with comprehensive advanced application and cloud-intelligent SD-WAN services on-premises.
Versa CSG365
CSG365 is a high-performance appliance for deployment at a small to medium-sized branch (up to 125 users) location that require advanced application and cloud-intelligent SD-WAN services, advanced SD-Security (NGFW and UTM).
| CSG350 | CSG355 | CSG365 | |
|---|---|---|---|
| Recommended Deployment | Small Branch | Small Branch | Small/Medium Branch |
| Throughput | |||
| Routing | 1,000 Mbps | 1,000 Mbps | 1,000 Mbps |
| Stateful Firewall | 1,000 Mbps | 1,000 Mbps | 1,000 Mbps |
| SD-WAN DIA | 350 Mbps | 350 Mbps | 750 Mbps |
| SD-WAN site to site | 250 Mbps | 250 Mbps | 500 Mbps |
| NGFW with SD-WAN | 200 Mbps | 200 Mbps | 500 Mbps |
| NGFW + AV with SD-WAN | N/A | 80 Mbps | 150 Mbps |
| NGFW + IPS with SD-WAN | N/A | 55 Mbps | 100 Mbps |
| NGFW + UTM with SD-WAN | N/A | 40 Mbps | 70 Mbps |
| Networking | |||
| Wired Interfaces | 4xCu GE interfaces | 6xCu interfaces + 1 NIC module slot | |
| Wireless Interfaces | 2x internal wireless slots which can be configured as single LTE, dual LTE. Configurable with Cat-6 modems |
3x internal wireless slots Configurable with up to 2x Cat-6 LTE modem options, SIM Cards externally accessible,1x Wi-Fi AP module – Simultaneous Dual Band Dual Radio, 802.11AC, 512 clients, 16 SSIDs Bluetooth for ZTP and Smart Phone App communications |
|
| NIC Support | See NIC Details Section | ||
| Management | 1x RJ45 RS232 console, 1x USB2.0, 1x Cu GE (via dual purpose port), Bluetooth for smart phone app connectivity | ||
| Other Interfaces and Modules | |||
| TPM | 1.2 | ||
| Crypto Acceleration | QAT functionality in hardware | ||
| USB | 1 x USB 2.0 | ||
| Physical Characteristics | |||
| Unit Weight | 2.75 lb / 1.25 kg | 4.4 lb / 2 kg | 4.4 lb / 2 kg |
| Unit Dimensions | 1.38”/35 mm (h) x 5.91” / 150 mm (w) x 7.87” / 200 mm (l) | 1.65”/42 mm (h) x 6.7” / 170 mm (w) x 13.8”/365 mm (l) | 1.65”/42 mm (h) x 6.7” / 170 mm (w) x 13.8”/365 mm (l) |
| PSU | External AC PSU, plus additional PSU for the PoE NIC | ||
| Unit Power | 110-240 VAC, 50-60 Hz | ||
| Total POE Power | 60 W | ||
| Cooling | Via Fan | ||
| Mounting | Desk Stand, Rack Mount | ||
| Operational and Compliance | |||
| Operational Temperature | 0-40C @ 3,000 m altitude | ||
| Storage Temperature | -20 to 70 C | ||
| Humidity | 10-85% | ||
| MTBF | 70,000 + Hours | ||
| FCC Classification | FCC Part 15, Class A | ||
| Environmental | ROHS | ||
| Safety | CE Marketing | ||
| Regulatory | FCC (US), CE (EU), CB (IEC) | ||
CSG300 NIC Modules
Versa Cloud Services Gateway 300 series appliances offer field-based configurability using the NIC slot. NIC slots can carry the following NICS and other additional NIC types in the near future, giving our customers the opportunity to further configure their platforms based on their needs.
| NIC Type | NIC Options | CSG355 |
|---|---|---|
| GE | 4 x Cu GE with 802.3at (POE+) | 4-port Cu 802.3at (POE+) ports supporting both Type 1 and Type 2 POE devices. Each port can provide up to 30W of power, with a maximum of 60W for the module, for connecting PoE devices such as cameras, access points, and VoIP handsets. |
| ADSL / VDSL | 1 RJ45 port ADSL / VDSL | Two separate NICs: Single port ADSL, VDSL module supporting Annex A (POTS) Single port ADSL, VDSL module supporting Annex B (ISDN) |
| T1 / E1 | 4 x RJ45 port T1/E1 | Single NIC supporting T1/E1 framing, supports all common formats and PPP, HDLC, Frame relay encapsulations. |
Documentation:
Download the Versa CSG300 Series Datasheet (.PDF)
